Palm Kernel Cracker Machine|Chestnut Shelling Machine(800,1000kg per hour)

Email: cara@gelgoog.com

Country Of Origin: China

Mission: Make food production easier and safer

Get Price
Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

Features


The palm kernel cracker machine is mainly used to crush palm kernel and separate shell kernel. About capacity,we have 800-2000kg/h. If you want a small one,we also have single stage almond nut shelling machine. The shell cracking machine is also suitable for processing almond, hazelnut, chestnut and so on nuts.

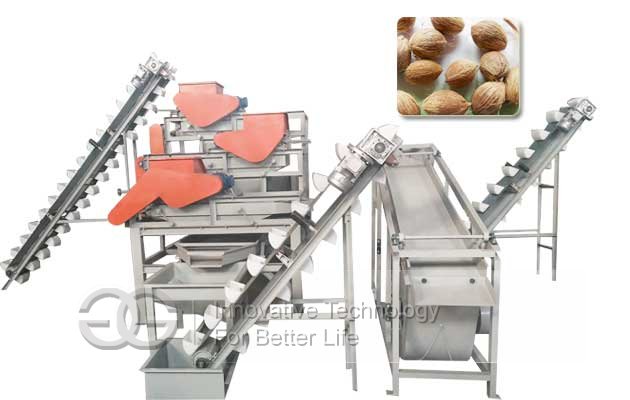

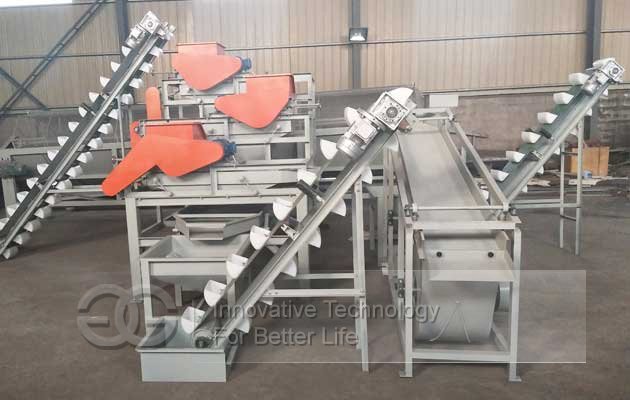

Palm Kernel Cracker Machine
Main Components of Palm Kernel Crushing Processing Machine:
1. Belt conveyor machine
The hopper picks up the material from the storage below, and as the conveyor belt or chain is lifted to the top, it turns around the top wheel and flips downwards. The bucket elevator pours the material into the receiving tank. Belt conveyor belt elevator belt is generally used rubber belt. It can be combined with other ancillary equipment to form a continuous or intermittent automated production line, and it is easy to maintain, easy to disassemble, and easy to clean.
2. Palm kernel and chestnut cracking machine
The shell crushing equipment is composed of a lifting machine and three levels of shelling processing. By adjusting the gap between the processing rollers at all levels, palm kernel and chestnut can be processed at one time without grading. Palm has a low crushing rate and is an ideal processing equipment for paim, hazelnut, chestnut, almonds, peach kernels, and the like. Cost-effective, save manpower, material resources and financial resources.
3. Palm and hazelnut shell kernel separator
The shell kernel separator is used for apricot, palm, hazelnut, chestnut, walnut and cashew kernel sheller. After shelling, palm kernel and shell are separated by shell kernel separator. It can also be used to separate shell nuts after shelling. The machine uses the difference between the specific gravity of the shell and the core and the levitation speed, and promotes the separation between the shell kernels by means of the airflow passing through the gaps between the particles. This product uses a single (double) fan, separation effect is good, high yield, is an ideal shell kernel separation equipment.


Message

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

*
*
Number Change

Technical Data

    Machine Parameter
    Hazelnut Elevator Machine Capacity: 500kg/h
    Power: 0.75kw
    Voltage: 380V
    Dimension: 2500*600*2000mm
    Hazelnut Cracking Equipment Capacity: 400-500kg/h
    Power: 2.2kw
    Voltage: 380V
    Dimension: 1900*780*1200mm
    Weight: 280kg
    Hazelnut Separating Machine Capacity: 500-800kg/h
    Power: 3kw
    Voltage: 380V
    Dimension: 2300*800*1600mm
    Weight: 200kg
    Hazelnut Grading Machine Dimension: 1.9*0.8*1.4m
    Power: 1.1kw
    Voltage: 380v,50hz
    Capacity: 500kg/h
    Weight: 140kg
    Hazelnut Drying Equipment LG-6 Layers: 3
    Motor power: 1.5kw
    Roasting power: 70-90kw
    Gas: 15-20kg/h
    Dimension: 6*1.6*2.5m
    Hazelnut Peeling Machine Dimension: 1.5*0.5*1M
    Power: 0.2kw
    Voltage: 220v,50hz
    Capacity: 400-500kg/h
    Weight: 380kg
