Cashew Nut Shell Oil Press Machine
Cashew Nut Shell Oil
Cashew Nut Shell Oil Extraction Machine
Nuts Oil Press Machine
Cashew Nut Shell Oil Press Machine
Cashew Nut Shell Oil
Cashew Nut Shell Oil Extraction Machine
Nuts Oil Press Machine

Cashew Nut Shell Oil Press Machine With Factory Price For Sale

Email: cara@gelgoog.com

Country Of Origin: China

Mission: Make food production easier and safer

Get Price
Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

Features


The cashew nut shell oil press machine or you can say small oil pressing machine is able to process a great many of vegetable oil seeds, such as soybeans, peanuts, cotton seeds, sunflower seeds, sesame seeds, palm kernel, coconut,rapeseed,tea seed, walnut, olive, corn germ, rice bran, tea seed, safflower seed, seeds of hippophae rhamnoides and so on.

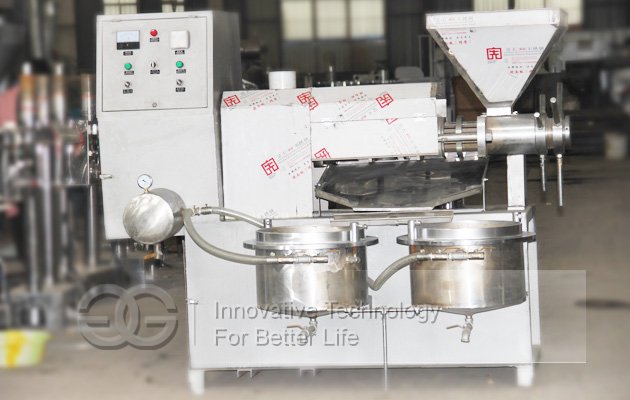

Cashew Nut Shell Oil Press Machine
Automatic spiral cashew nut shell oil press is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components.

Principle and Structure:
Oil press machine is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.
Small investment, fewer land space, labor saving and wide application, the small oil press machine is your first choice to start the oil making business. All working processes are controlled by the controlling panel.

Multi-purpose Cashew Nut Shell Oil Press Machine Video:

Message

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

*
*
Number Change

Technical Data

    Model GGZX-80 GGZX-100 GGZX-120 GGZX-130 GGZX-165
    Spiral diameter φ80mm φ100mm φ120mm φ130mm φ165mm
    Spiral speed 47r/min 38r/min 37r/min 32r/min 32r/min
    Power 5.5KW 7.5KW 11-15KW 15-18.5KW 30KW
    Vacuum pump 0.75KW 1.5KW 1.5KW 1.5KW 2.2KW
    Heater 2.2KW 2.2KW 3.0KW 3.0KW 3.0KW
    Processing capacity 65-130Kg/h 140-200Kg/h 200-300Kg/h 300-500Kg/h 500-700Kg/h
    Total Weight 880Kg 1250Kg 1500Kg 1800Kg 2500Kg
    Dimensions (mm) 1500×1300×1550 1700×1300×1650 2050×1300×1800 2100×1300×1800 2620×1350×1900
